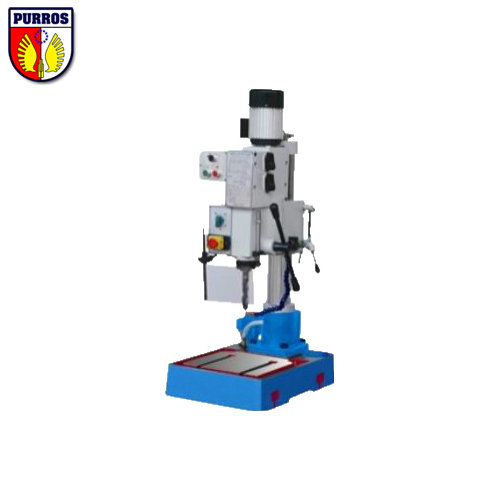

25mm Vertical Drilling Press D5025B, 1.1/0.75kw

Category: Tags: , , , , ,

Description

Model D5025B D5025
Max. Drilling capacity (mm) 25 25
Diameter of column (mm) 100 100
Spindle travel (mm) 150 150
Distance spindle axis to column generating line (mm) 2250 225
Max. Distance spindle nose to table (mm) / 6+30
Max. Distance spindle nose to base (mm) 550 1670
Spindle taper MT3 MT3
Spindle speeds range (r/min) 100-2900 100-2900
Spindle speeds series 8 8
Dimension of worktable surface (mm) / Φ440
Table travel (mm) 560 560
Dimension of base (mm) 690 X 500 690 X 500
Overall height (mm) 1390 1900
Main motor (KW) 1.1/0.75 1.1/0.75
Coolant motor (W) 40 40
G.W/N.W (kg) 235/225 300/290
Packing dimension (cm) 75 X 52 X 117 70 X 56 X 182
PURROS Machinery is widely recognized for industrial automated products, our full line of products are including: Auto Feed Drill Machine, Servo Feed Drill Machine, Servo Tapping Machine, Hydro Speed Regulators, Roller Burnishing Tools, Multi Spindle Heads, Special Purpose Machines (SPM), and more.
